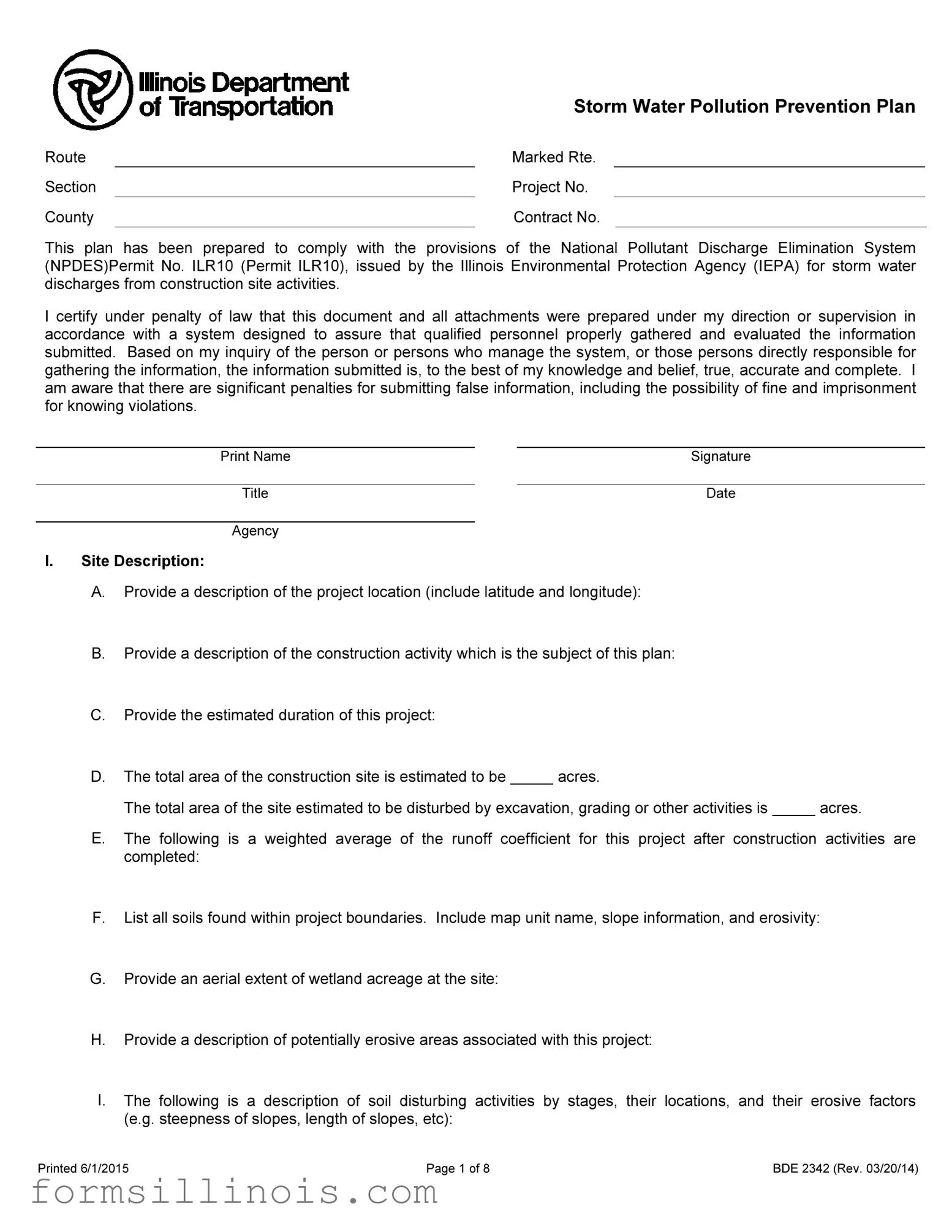

Free Illinois Bde 2342 Template

Detailed Guide for Filling Out Illinois Bde 2342

Completing the Illinois BDE 2342 form is a crucial step for those involved in construction projects, as it ensures compliance with the National Pollutant Discharge Elimination System (NPDES) Permit No. ILR10. This form outlines a Storm Water Pollution Prevention Plan, which is essential for minimizing the impact of stormwater discharges from construction sites. By following a detailed step-by-step guide, individuals can accurately document their project’s approach to managing stormwater, thus adhering to environmental regulations and helping to protect our water resources.

1. Start by providing a concise description of the project location, including both latitude and longitude, in Section I, "Site Description."
2. In the subsections that follow, detail the construction activity, the estimated duration of the project, the total area of the site, and the area estimated to be disturbed by construction activities.
3. List the weighted average of the runoff coefficient post-construction, all soils within project boundaries including information on slope and erosivity, and the aerial extent of any wetland acreage at the site.
4. Describe potentially erosive areas, soil disturbing activities by stages, and include information on their location and factors contributing to erosion.
5. Refer to erosion control and drainage plans for details on drainage patterns, slopes, sediment tracking controls, and locations of soil disturbance and structural controls.
6. Identify the owner of the drainage system the project will drain into and list any General NPDES ILR40 permittees in the jurisdiction.
7. Provide information on receiving waters, including the ultimate receiving waters for the site.
8. Detail any site areas to be protected or remain undisturbed, such as streams, buffers, or natural vegetation.
9. List sensitive environmental resources associated with the project and fill out additional sections if applicable to your project, such as "303(d) Listed receiving waters" and "TMDL."
10. Identify pollutants of concern associated with the construction project.
11. Move on to Section II, "Controls," which addresses the implementation of measures for managing stormwater and pollutants. Include erosion and sediment controls, stabilization practices, structural practices, and any use of treatment chemicals.
12. Describe permanent stormwater management controls that will be implemented and reference any pertinent state or local laws regarding stormwater management.
13. Ensure the contractor and subcontractors submit their Contractor Certification Statement, BDE 2342a, and include their construction schedule, detailing the implementation of pollution prevention BMPs.
14. Conclude the form with documentation of procedures and requirements specified in approved sediment and erosion site plans or storm water management plans by local officials.
15. Print the completed form, ensure all attachments are included, and have it signed and dated by the responsible individual. This signature certifies the accuracy and completeness of the information provided.

Upon completing these steps, the form, along with all necessary attachments, should be reviewed for accuracy and submitted to the appropriate regulatory body as required. This submission marks a significant step towards maintaining compliance with environmental regulations and advancing the project with an emphasis on sustainability and responsible management of stormwater runoff.

1. What is the Illinois BDE 2342 form?

   The Illinois BDE 2342 form is a document created to outline the Storm Water Pollution Prevention Plan for a specific construction site. It aims to detail how a project will comply with the National Pollutant Discharge Elimination System (NPDES) Permit No. ILR10, as issued by the Illinois Environmental Protection Agency (IEPA), regarding stormwater discharges from construction activities.

2. Who needs to complete the BDE 2342 form?

   Any contractor or subcontractor involved in a construction project that requires adherence to the NPDES Permit No. ILR10 in Illinois must complete this form. It's essential for individuals or entities responsible for the construction site's storm water pollution prevention plan, ensuring that all activities meet the specified guidelines to prevent stormwater contamination during and after construction.

3. What information must be provided in the form?

   • Site description, including location and construction activity details
   • Estimation of project duration and area affected by the construction activities
   • Type of soils and erosion factors within the project area
   • Details of erosion and sediment control measures, stabilization practices, and any structural practices planned or implemented
   • Identification of pollutants associated with the construction project, alongside methods to manage and prevent storm water contamination

4. How do erosion and sediment control practices impact the form?

   Erosion and sediment control practices play a crucial role in the BDE 2342 form as they outline specific measures to prevent soil erosion and manage sediment on construction sites. These practices ensure that contractors actively minimize the environmental impact of their construction activities on nearby water bodies and comply with the NPDES Permit ILR10 requirements. The form demands a detailed description of these practices, including their implementation stages and effectiveness in mitigating stormwater pollution.

5. What are the consequences of submitting false information on the BDE 2342 form?

   Submitting false information on the BDE 2342 form is taken very seriously and is subject to significant penalties, including fines and imprisonment for knowing violations. The form must be prepared accurately and truthfully, as certifying the document under penalty of law signifies that the information provided is, to the best of the submitter’s knowledge, accurate and complete.

1. Not providing or inaccurately specifying the project location, including latitude and longitude, which is crucial for site identification.

2. Failure to describe the construction activity clearly, making it difficult to assess the plan's relevance to the project.

3. Omitting the estimated duration of the project can lead to inadequate preparation for the erosion and sediment controls needed over time.

4. Inaccurately estimating the total area of the site and the area disturbed by construction activities can lead to insufficient erosion and sediment control measures.

5. Not listing all soils within the project boundaries, including map unit name, slope information, and erosivity, can result in the selection of inappropriate control measures.

6. Leaving out the aerial extent of wetland acreage at the site may lead to non-compliance with wetland protection and stormwater management requirements.

7. Failing to describe potentially erosive areas associated with the project, which is essential for targeting control measures effectively.

8. Omitting information on soil disturbing activities by stages, including their locations and erosive factors, can result in inadequate planning and implementation of necessary controls.

9. Not identifying who owns the drainage system the project will drain into could lead to issues with stormwater discharge compliance.

10. Skipping the description of measures that will be implemented to control pollutants of concern, like sediment or concrete waste, may lead to non-compliance with pollutant discharge regulations.

When preparing for construction projects in Illinois that require adherence to storm water pollution prevention protocols, it's essential to have a clear understanding of not just the Illinois BDE 2342 form but also other critical forms and documents that often accompany it. The BDE 2342 form serves as a comprehensive Storm Water Pollution Prevention Plan, aligning with regulations under the National Pollutant Discharge Elimination System (NPDES) Permit No. ILR10. However, this pivotal document is frequently part of a larger suite of forms and documents necessary for thorough compliance and project execution.

• Contractor Certification Statement (BDE 2342a): This form is a direct accessory to the Illinois BDE 2342. It is a certification by contractors and subcontractors verifying their commitment to comply with the stormwater pollution prevention plan and all applicable NPDES permits. This helps ensure that everyone involved in the construction project is aware of their responsibilities in mitigating pollution risks.
• Erosion and Sediment Control Plan: Typically required for submission alongside the BDE 2342, this plan details specific measures and practices designed to prevent erosion and manage sediment on construction sites. It often includes site maps and details specific controls like silt fences, sediment basins, and stabilization practices.
• Notice of Intent (NOI) for Construction Activities: For projects disturbing one or more acres of land, a NOI informs the Illinois Environmental Protection Agency (IEPA) of a firm's intention to discharge stormwater from a construction site under the NPDES general permit. This form starts the process through which the IEPA grants permission to discharge under specified conditions.
• Water Quality Certification or Waiver: Depending on the project’s potential impact on water bodies, a certification or waiver under Section 401 of the Clean Water Act may be necessary. This document assesses whether the discharge will comply with state water quality standards, including both the construction phase and post-construction stormwater management.
• Local Permits and Approvals: In addition to state-level documentation, various local jurisdictions may require permits or approvals before construction can begin. These documents ensure the project meets specific municipal or county regulations, including but not limited to stormwater management, erosion control, and site development standards.

The preparation and submission of the Illinois BDE 2342 form, alongside its accompanying documents, form a critical foundation for legal and environmental compliance in construction projects. By understanding not only the purpose but also the interconnectivity of these documents, stakeholders can navigate the regulatory landscape more effectively. This not only ensures adherence to legal obligations but also promotes sustainable construction practices that protect our natural resources.

• The Illinois Bde 2342 form bears resemblance to the construction site Storm Water Pollution Prevention Plans (SWPPP) required across various states in conformity with the federal Clean Water Act. SWPPP documents, similar to the Illinois Bde 2342 form, necessitate comprehensive details on erosion and sediment controls, stabilization practices, and the description of pollutants potentially influencing stormwater quality emanating from construction activities.

• It is akin to the Environmental Site Assessment (ESA) Phase I and II reports, which evaluate the environmental condition of a site and its potential contamination risks. Both the Bde 2342 form and ESAs serve a regulatory compliance purpose, ensuring that site operations do not adversely affect water quality or contribute to pollution.

• The form parallels Construction Dewatering Plans, emphasizing the management of potentially contaminated water generated during excavation or site preparation activities. Both documents focus on mitigating adverse impacts on surrounding water bodies through controlled water discharge procedures and treatments.

• Similar to Habitat Conservation Plans (HCP) under the Endangered Species Act, the Bde 2342 form considers the potential impacts of construction activities on sensitive environments, including threatened and endangered species, wetlands, and other critical habitats. Both necessitate strategies to minimize or mitigate negative impacts on these sensitive areas.

• The Bde 2342 form is comparable to Pollution Incident Prevention Plans (PIPP) that are aimed at preventing spills and other pollution incidents on construction sites. Both types of documents require a detailed analysis of potential pollution sources and outline mitigation measures to prevent environmental contamination.

• It bears similarities to National Environmental Policy Act (NEPA) assessments or Environmental Impact Statements (EIS), in that it requires an evaluation of how a construction project could affect the environment and demands the formulation of strategies to avoid, minimize, or mitigate adverse effects. Both processes involve public or agency review and comment.

• The document is also aligned with Spill Prevention, Control, and Countermeasure (SPCC) Plans required for the prevention of oil spills into navigable waters or adjoining shorelines. Both the Bde 2342 form and SPCC Plans entail careful planning and implementation of practices aimed at preventing contamination of waterways due to project activities.

When filling out the Illinois BDE 2342 form, it's important to pay attention to the details to ensure compliance with the NPDES Permit No. ILR10 requirements. Here are some dos and don'ts to help guide you through the process:

Do:

1. Read instructions carefully: Before starting, make sure to thoroughly read the form and instructions to understand all the requirements.
2. Provide accurate information: Fill out the form with accurate and complete information to the best of your knowledge, especially when describing the site and construction activities.
3. Use additional sheets if necessary: If you find that there is not enough space to provide full descriptions or explanations, attach additional sheets as needed, ensuring they are clearly referenced in the form.
4. Check for updates: Before submitting, ensure that you have the latest form version and that no changes have been made to the filing requirements.

Don't:

1. Rush through the form: Don't hurry when filling out the form. Taking your time can help prevent mistakes that might require correction later.
2. Skip sections: Do not leave any sections incomplete unless they are explicitly marked as optional or not applicable to your project.
3. Use vague descriptions: Avoid using vague language. Be specific, especially when describing the construction activities, erosion, and sediment control practices.
4. Forget to sign: Do not forget to sign and date the form. An unsigned form may lead to delays or be considered invalid.

There are several misconceptions about the Illinois BDE 2342 form, often stemming from its complexity and the detailed requirements it sets forth for stormwater pollution prevention plans. Understanding these misconceptions is crucial for compliance and effective environmental protection during construction activities. Here are eight common misconceptions clarified:

• The form is only a recommendation. This is incorrect; the BDE 2342 form is a requirement under the National Pollutant Discharge Elimination System (NPDES) Permit No. ILR10 for stormwater discharges from construction sites. It is legally binding and must be followed to avoid penalties.
• Any staff member can prepare and sign the form. Only individuals who have the authority and supervision over the construction project and comprehensive knowledge of the site conditions and the NPDES requirements can certify the document under penalty of law.
• The form covers only the construction phase. While the form focuses on preventing pollution during construction, it requires details on both interim and permanent stabilization and control measures that extend beyond the active construction phase.
• Fill it out once, and you’re done. The BDE 2342 form, along with its attachments, requires updates whenever there are significant changes to construction plans, erosion and sediment control measures, or if there is a change in site condition that affects stormwater discharge.
• It’s solely about sediment control. While controlling sediment is a significant focus, the form also requires information on managing other pollutants, such as concrete washout, chemicals, and waste, making it a comprehensive stormwater pollution prevention tool.
• Small projects are exempt. Size does not necessarily exempt a project from NPDES permit requirements or from needing a stormwater pollution prevention plan. If the construction activity disturbs one or more acres, or is part of a larger common plan of development, compliance is necessary.
• The form is static and doesn’t require input from ongoing site activities. In reality, the form is a dynamic document. Contractors and subcontractors must provide updates and certifications as the project progresses and as control measures are implemented or altered.
• Only state or federal projects need to comply. All construction projects that meet the criteria laid out by the NPDES permit, regardless of whether they are state, federal, or private, must comply with the requirements, including completing and updating the BDE 2342 form as necessary.

Clearing these misconceptions is vital for the construction industry to comply with environmental protection standards and to avoid the legal and financial consequences of non-compliance. Effective stormwater pollution prevention helps protect water quality and promotes sustainable construction practices across Illinois.

Filling out and utilizing the Illinois BDE 2342 form, a requirement for storm water discharges from construction site activities under the NPDES Permit No. ILR10, involves several critical steps and awareness of specific requirements. It's vital to ensure that these steps are followed meticulously to stay compliant with the Illinois Environmental Protection Agency (IEPA) mandates:

• Accurate Site Description: The form begins with a detailed site description, including geographical location, construction activity details, estimated duration, and the size of disturbed areas. Pinpointing the precise latitude and longitude helps in identifying the construction site's potential impact on storm water pollution. Terrestrial features like soil types, erosion factors, wetland acreage, and existing vegetation must be thoroughly documented.
• Comprehensive Planning: Completing the BDE 2342 form requires detailed planning for both during and after construction activities. This includes specifying erosion and sediment control plans, drainage patterns, and the preservation of natural buffers and sensitive areas. Clear identification of construction phases and associated controls ensures minimal soil disturbance and effective sediment management. Moreover, pre-emptive measures like stabilization practices and structural controls should be outlined vividly to mitigate potential erosive impacts.
• Pollution Prevention Measures: A critical section of the form addresses pollutants of concern and elaborates on the controls to manage them effectively. Identifying potential sources of pollution, including soil sediment, concrete waste, and petroleum products, enables tailored strategies to mitigate their release into storm water. It's crucial to plan for waste handling, including specifics on storage, treatment, and disposal methods to prevent contamination.
• Contractor Accountability: The form emphasizes the accountability of contractors and subcontractors in implementing and maintaining the pollution prevention measures. Prior to starting any work, these entities are required to submit a Contractor Certification Statement, ensuring they understand and commit to their roles in compliance with the permit requirements. This section ensures a systematic approach towards minimizing environmental impact.
• Regulatory Compliance and Local Integration: The permit requires adherence not just to state-level stipulations under the IEPA but also to local regulations and plans approved by local officials. This dual-layer compliance assures that the construction activities align with broader environmental protection goals, leveraging local knowledge and specific environmental sensitivity. Detailed descriptions of compliance with applicable state or local laws, as well as strategies for permanent storm water management post-construction, are vital to achieving sustainable outcomes.

Ultimately, the Illinois BDE 2342 form serves as a comprehensive blueprint for managing storm water pollution associated with construction activities. It not only outlines the planning and preventive measures required but also underscores the collaborative responsibility of all parties involved in the construction process. By adhering to these key takeaways, constructors can significantly mitigate the environmental impact of their projects, ensuring they progress in harmony with nature and regulatory mandates.
